Description

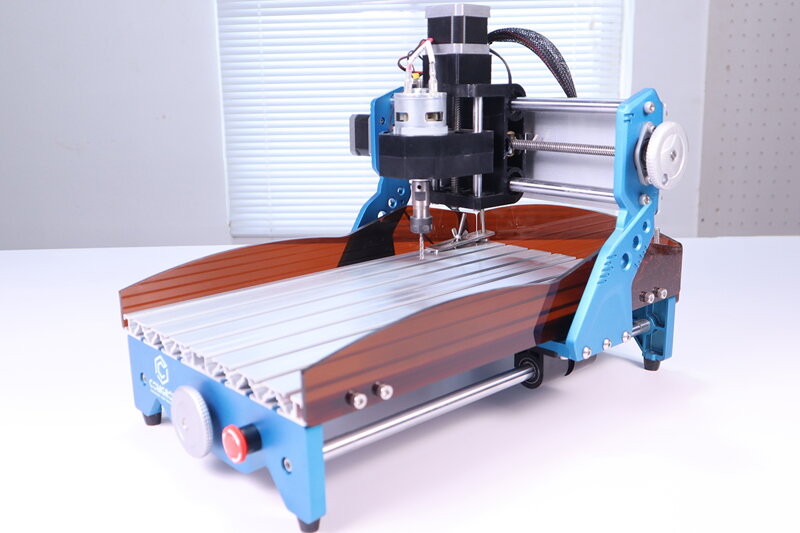

- Compared with the conventional engraving machine on the market, the X-axis uses 12-diameter hardened steel rods, and its operation is more stable.
- The construction of the Z-axis is simplified, the disassembly and assembly of the Z-axis assembly is simple, the guide bearing and the screw nut are processed by a clamping system that surrounds the structural parts of the Z-axis and thus prevents the risk of moving parts falling.
- In normal operation, it ensures that the cutting waste does not fall into the moving shaft or the moving screw, better ensures the service life of the product, and the maintenance itself is more convenient
- The X, Y and Z axes are equipped with two limit switches. When the axis moves to the extreme position, the milling machine will automatically stop to avoid collision when it reaches the limit position.
- The front of the product is equipped with an emergency stop button. In the event of an emergency, press the emergency stop button and the milling machine will shut down immediately.
- The whole is of high quality and design, the wiring is reasonably hidden, the offline control module is fixed simply and conveniently.
- Simple maintenance and simple assembly within 10 min
- The base plate is equipped with a solid clamping system that will satisfy every DIYer.
| Product size | 460*350*370 mm | Supported file format | PDF/.DWG/.JPEG/.jpg/.PNG/.BMP |
| Package size | 235*235*165 mm | Frame | Aluminum alloy + Z-axis ABS material |
| Net weight of the machine | 7.5 kg | Compatible features | suitable with 1.6W laser head, 5W, 10W, corresponds to GRBL, Lightburn |
| Total package weight | 9.8 kg | Engraving area | 300*180*45mm |
| Engraving speed | 100 mm/min | Relative certificates | ROHS2.0/FCC/CE/FDA |
| Main engine | 775 motor, 12V~24V, 10000RPM | Engraving material | Wood / bamboo / cardboard / plastic / leather / acrylic / soft aluminum / brass, etc |
| Laser head performance | 5W (optional) | Engraving/cutting material | Wood / bamboo / cardboard / plastic / leather / acrylic / soft aluminum / brass, etc |
| System | G code generation software：Windows XP、7、8、10 Control software：Grbl(Candle) iphone system：Easel webpage |
||
