Description
This laser engraver is available in two variants, 5 W and 10 W.
Function:
- FAC + LD laser module, spot diameter 0.08mm, compared with normal laser module cutting 2-3mm wood, 5w LD + FAC laser module can easily cut 4mm wood, 10w can cut 8mm wood (the values shown are approximate from the manufacturer and cannot be guaranteed due to the different properties of different types of wood)
- Two Y-axis motors, high-speed engraving is more stable, can effectively reduce engraving noise
- High Z-axis range with manual height adjustment, suitable for most rotary accessories.

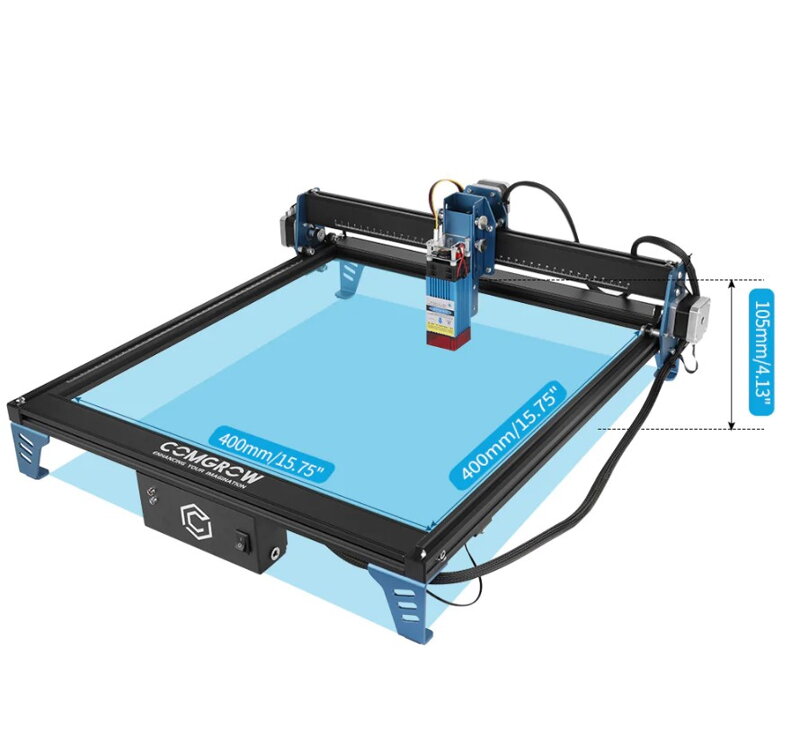

- Large engraving area 400*400mm.
- Equipped with a laser protective cover (the protective cover is not included in the package, you can find it here), the filtering efficiency of ultraviolet light can reach 97%, and you can watch the engraving without protective glasses.
- Full metal frame, high precision engraving.
- Pre-assembled kit, total assembly within 20 minutes.
Parameters:
| Product size | 575*575*205 mm | Software | LaserGrbl/Lightburn |
| Package size | 610*310*175 mm | System | LaserGRBL：Windows XP、7、8、10 Lightburn：Windows XP、7、8、10、M |
| Net weight of the machine | 4.0 kg | Supported file format | nc/.dxf/.bmp/.jpg/.png a etc |
| Total package weight | 5.4 kg | Laser wavelength | 445±5 nm |
| Engraving speed | 5000 mm/min | Laser head performance | 5 W / 10W |
| Motherboard style | 1x X-axis, 2x Y-axis | Engraving area | 400*400 mm |
| Electric power | 96 W | Relative certificates | ROHS2.0/FCC/CE/FDA |
| Baud rate | 115200 | Engraving material |
Wood / bamboo / cardboard / plastic / leather / |
| MCU | 32 bits | Engraving/cutting material | Wood/Cardboard/Leather/Acrylic etc. |
