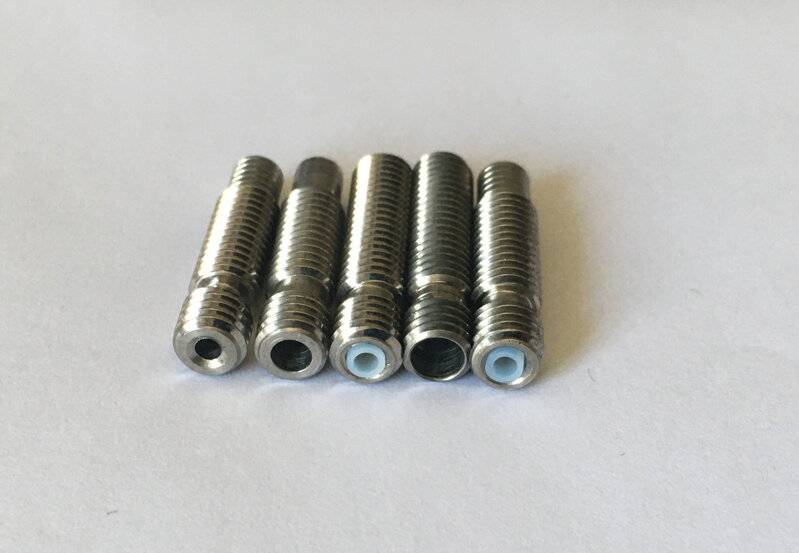

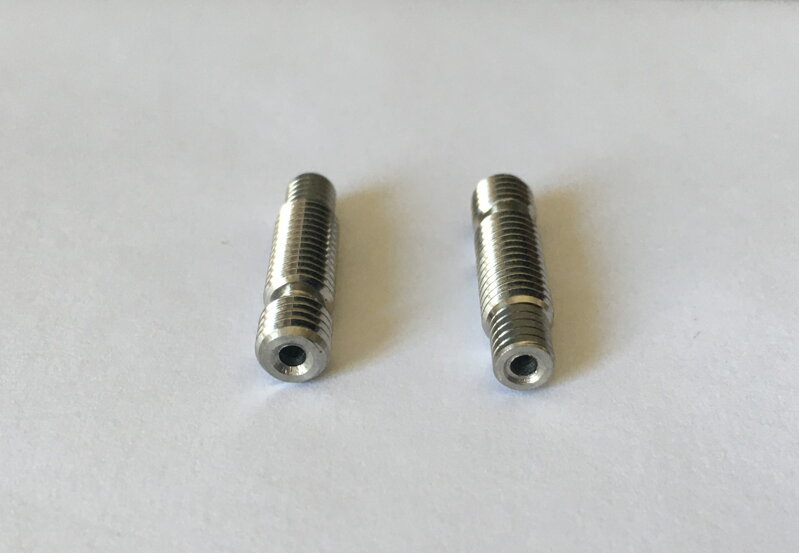

Variants:
A -threads M6, length 25.5 mm, inner diameter 1.9 mm
b -threads M6, length 26 mm, inner hole 3 mm
C - threads M6, length 26.5 mm, inner diameter 3 mm with installation for longer thread 1.9 mm, inner diameter of Teflon tube is 2 mm
d - threads M6, length 26.5 mm, inner diameter 4.1 mm
e - threads M6, length 26 mm, inner hole 3 mm with installation for longer thread 1.9 mm, inner diameter of the teflon tube is 2 mm (the same as B - but with installation as C)
v6 - all -metal - shorter thread M6 length 5 mm, longer thread M7, hole 1.9 mm, length 22.3 mm
v6 - Teflon - from the side of the shorter thread is inserted a Teflon tube of size 2/3 mm, the inner diameter of the teflon tube is 2 mm
v6 - hole 3,1 - through hole 3.1 mm - without installation at the end
v6 - hole 4,1 mm - shorter thread M6 length 5 mm, longer thread M7, total length 22 mm
Mk8 - thread tube M6 length 30mm including Teflon, inner diameter of Teflon tube is 2 mm
MK8 - 35/40/50 mm - M6 over the entire length including Teflon, the inner diameter of the Teflon tube is 2 mm
MK10 - a thicker heatbreak for Flashforge printers and others (a photo with a sticking PTFE tube - tube belongs to the nozzle)
Heatbreak for Ender 3 printers, Anet E10/E12
CR10 - all -metal - length 23 mm, inner hole 1.9 mm, smooth part 15 mm, smooth part 7 mm, M6 thread with a length of 5 mm, for a smooth part is 4 mm hole in length 5 mm
CR10 - Teflon - length 23 mm, inner hole 3 mm (contains a teflon tube), a smooth part length of 15 mm, a smooth part diameter 7 mm, thread M6 length 5 mm, for a smooth part is 4 mm hole 5 mm , The inner diameter of the Teflon tube is 2 mm
CR10 - hole 4.1 mm - length 27 mm, inner hole 4.1 mm, smooth part 15.5 mm, smooth part 7 mm, thread M6 length 5 mm
mini - Allmetal - titanium heatbreak for Průša Mini printer - narrowing neck behind the thread part. Length 32 mm, thread inner hole 2 mm and length 5 mm, smooth part diameter 5.5 mm, inner diameter 4.1 mm.
mini - 4 mm hole - Heatbreak for printer Průša Mini - without narrowing behind the thread part. Lengths 32 mm, inner diameter 4 mm.
